Drive function and arrangement

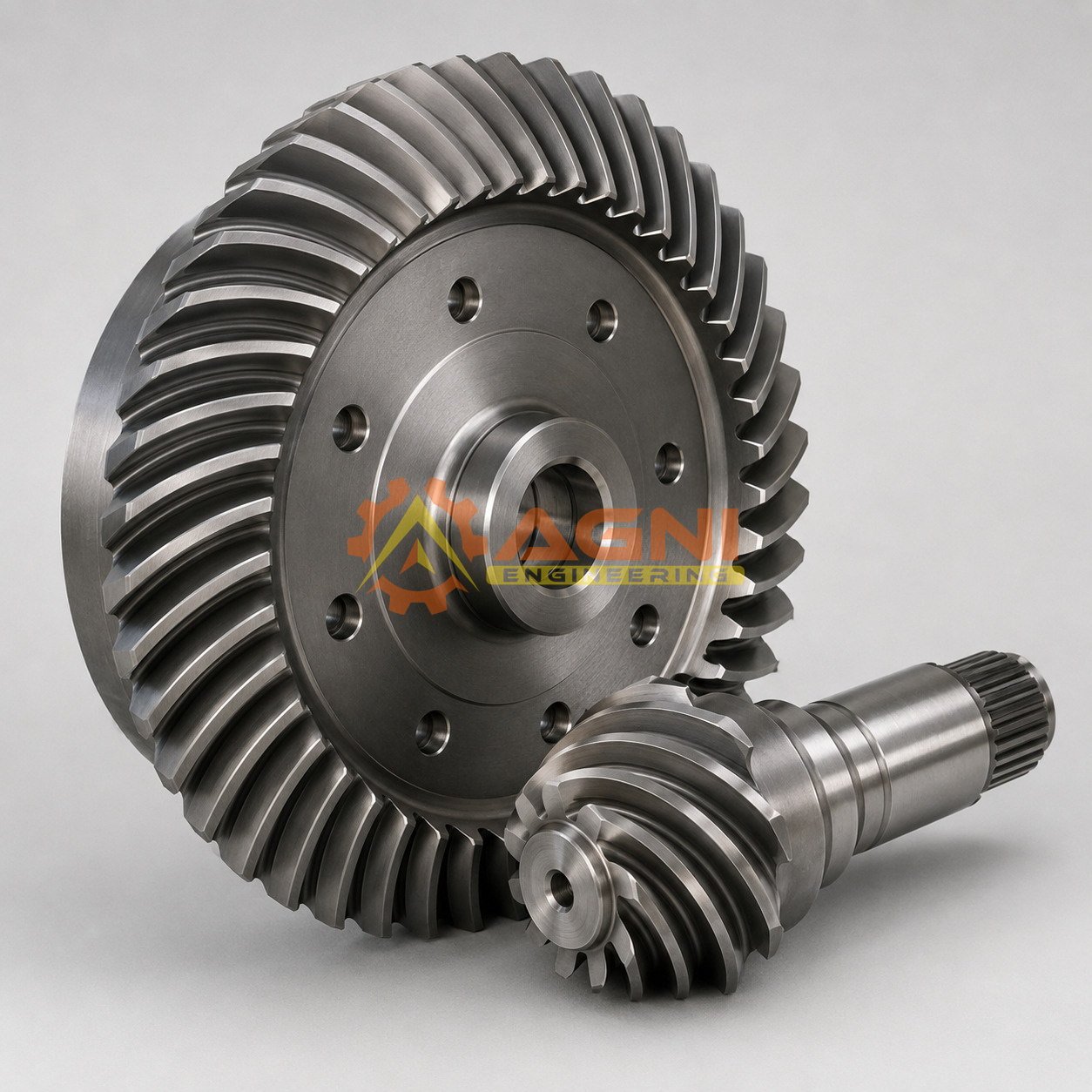

Custom bevel gears for rolling-mill auxiliaries and metal-processing equipment. The complete review should identify the input and output shafts, shaft angle, ratio, direction of rotation, speed, torque, bearings, mounting distances and available space.
Selecting the gear type
Spiral bevel gears are commonly evaluated where progressive tooth engagement, speed and load distribution are priorities. Straight bevel gears can suit appropriate lower-speed or simpler duties, while miter gears provide an equal-ratio change of direction. The existing design should not be changed without reviewing the whole transmission.
Inputs for technical review
- Assembly drawing or clear photographs of the installed drive
- Gear and pinion drawings or both physical samples
- Ratio, shaft angle, speed, torque and direction
- Mounting distance, backlash and bearing arrangement
- Material, heat treatment, lubrication and environment
- Failure evidence, required life and quantity
Mounting and validation
Backlash and contact pattern must be evaluated at the approved mounting position. Housing stiffness, bearing condition and lubrication are part of the system and can determine whether a technically correct gear set performs reliably in service.
Frequently asked questions
Can rolling mill drives be developed from an existing sample?
A sample can support dimensional study, but the most reliable route also includes the mating member, shaft angle, mounting information, speed, torque, material or hardness information and failure history.
What information is required for quotation?
Provide a dimensioned drawing or sample, quantity, module or diametral pitch, tooth counts, pressure angle, spiral hand where applicable, ratio, material, heat treatment, accuracy requirement and expected duty.
Can one member be replaced without the mating gear or pinion?
It may be possible after inspection, but a matched-pair approach is normally preferred because tooth contact, backlash and mounting are interdependent.
How is delivery time determined?
Delivery depends on geometry, quantity, material availability, tooling, heat treatment, finishing, inspection scope and technical approval.
