Manufacturing Capabilities

Spiral Bevel and Bevel Gears Up to 1200 mm Diameter, Module 1 to 25 and 150 mm Face Width, Cut, Lapped and Ground In-House at Our Manufacturing Unit in North Gujarat.

Manufacturing Capabilities

Our Range

ItemRange
Maximum gear diameter1200 mm
Module1 to 25
Maximum face width150 mm
Gear typesSpiral bevel, straight bevel, crown wheel and pinion, hypoid, Zerol, miter
MaterialsCase-hardening alloy steels and stainless steel, to your drawing
Tooth cutting, lapping and grindingIn-house
AccuracyDIN, AGMA or customer-specific requirements
QuantitiesOne prototype to repeat production
Reverse engineeringFrom a worn sample or the mating member

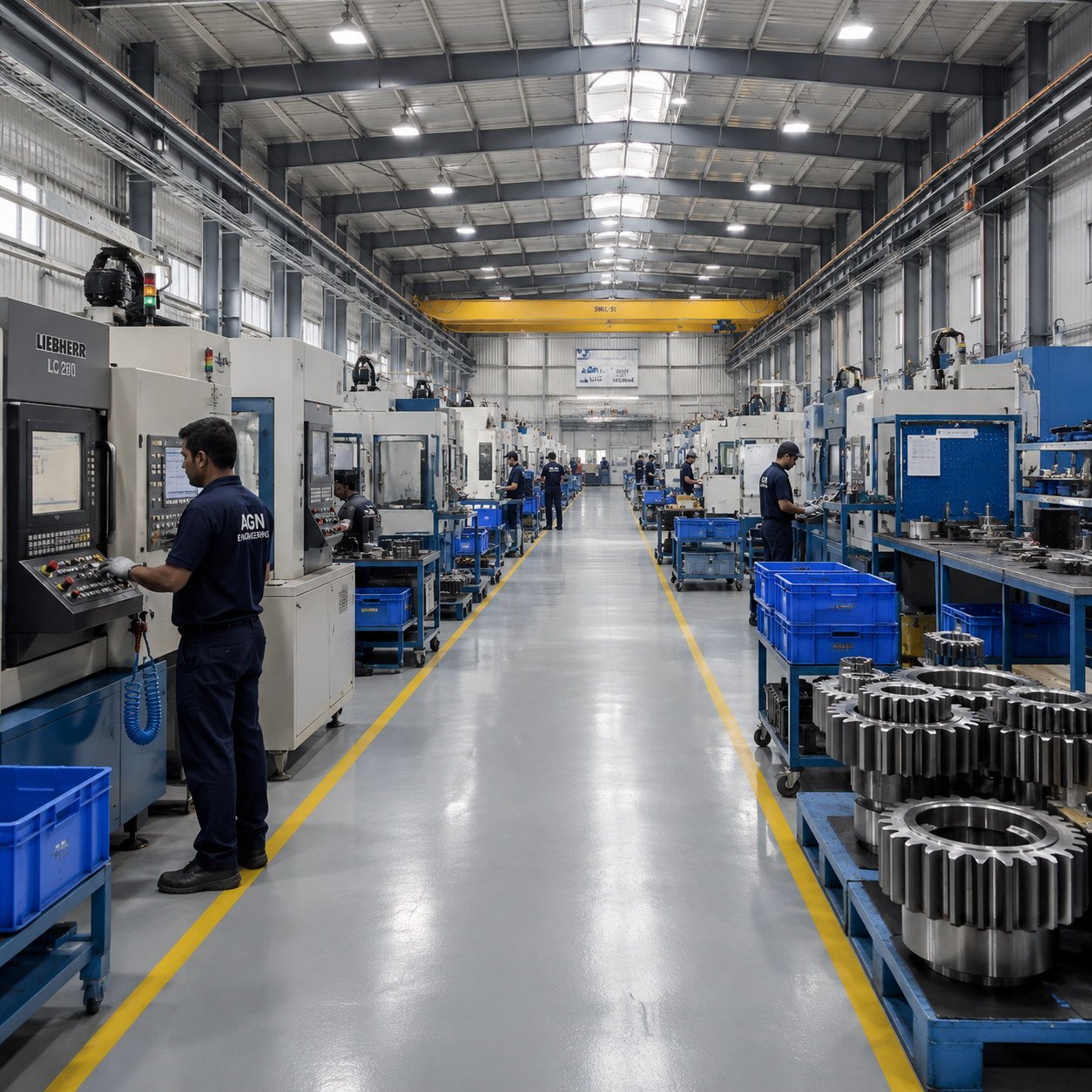

Where We Make the Gears

Our manufacturing unit is at 6/190 and 6/191, Deesa–Patan Highway, Lakshmipura, Taluka Saraswati, District Patan, Gujarat 384285.

Engineering Review Before Production

A bevel gear cannot be judged from its outside diameter and tooth count alone. Before we quote, we review the module or diametral pitch, pressure angle, shaft angle, spiral angle and hand, face width, ratio, mounting distance, backlash, material, heat treatment and duty.

How a Set Is Made

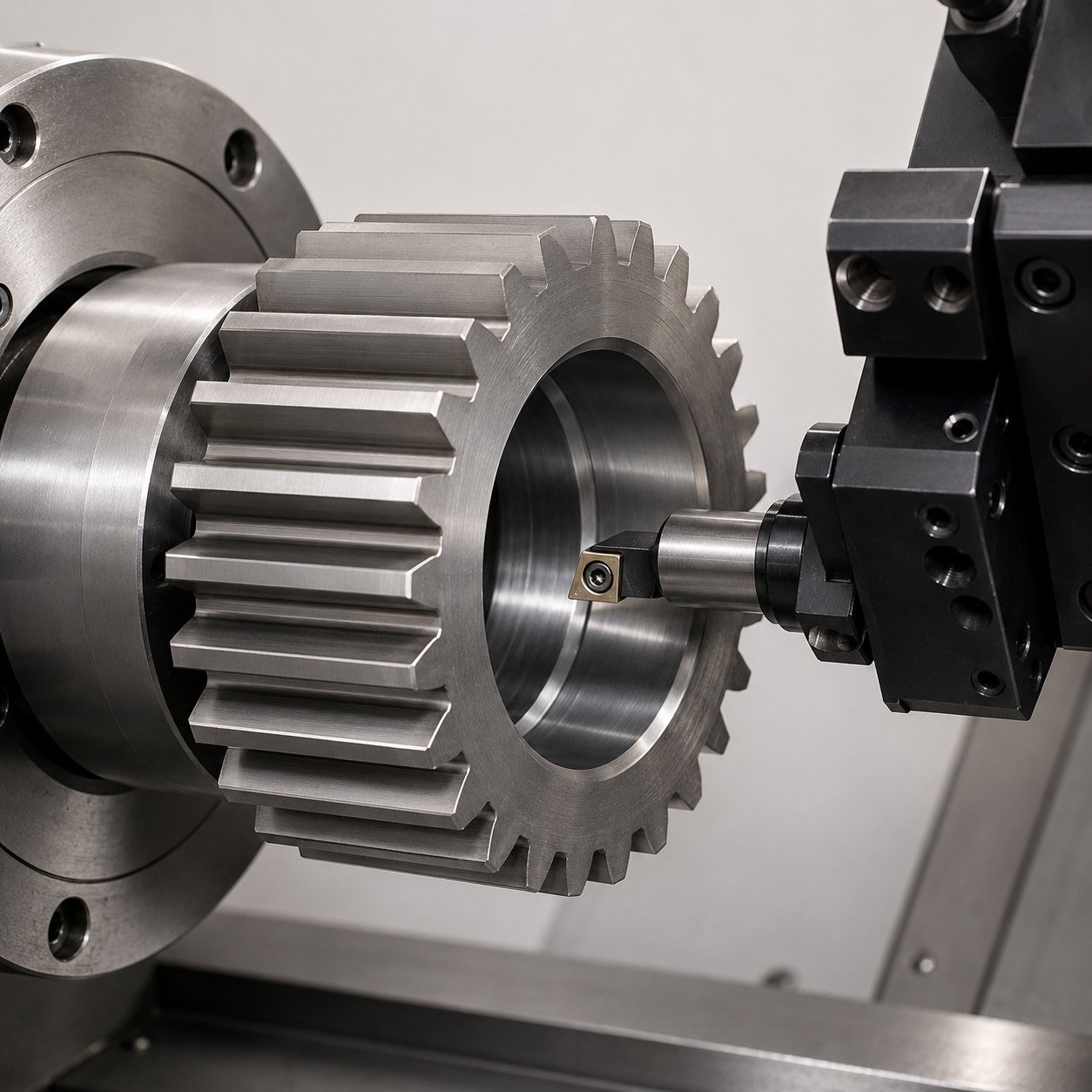

  1. Blank preparation: material procurement, forging or bar stock, and CNC turning and boring of the blank.

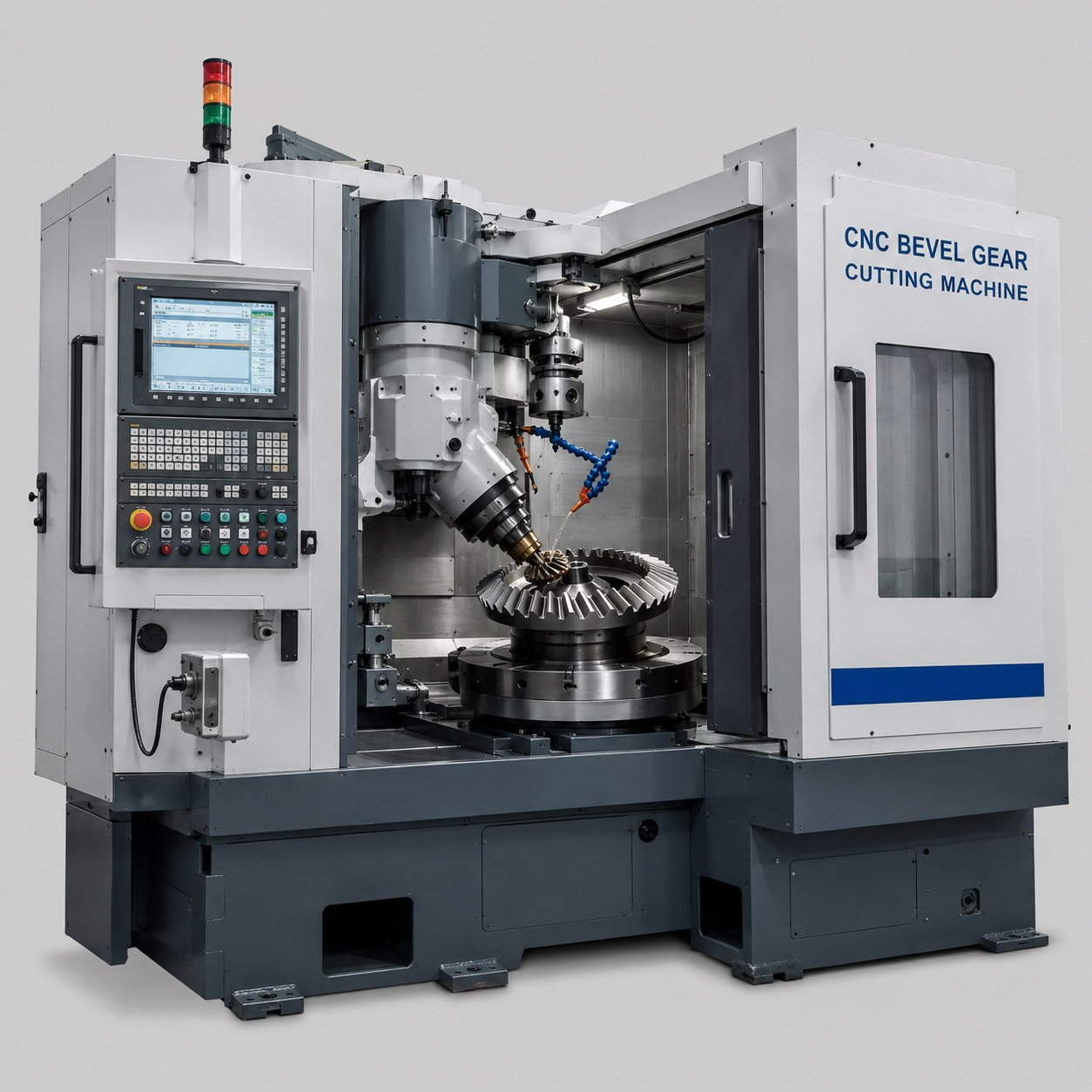

  2. Tooth cutting: spiral, straight, hypoid or Zerol teeth cut in-house to the agreed geometry.
  3. Heat treatment: selected for the material, usually case carburising for alloy steel gears.
  4. Finishing: the pair is lapped together, or ground for higher accuracy and lower noise.
  5. Inspection: dimensions, hardness, runout, backlash and contact pattern checked on the matched pair.
  6. Marking and packing: set marking, rust protection and export-standard packing.

Prototype, Replacement and Production Quantities

We take on prototypes, urgent replacements, small batches and repeat production. Tooling, inspection frequency and delivery are planned to the drawing and your schedule.

Frequently Asked Questions

Can bevel gear manufacturing be developed from an existing sample?

A sample can support dimensional study, but the most reliable route also includes the mating member, shaft angle, mounting information, speed, torque, material or hardness information and failure history.

What information is required for quotation?

Provide a dimensioned drawing or sample, quantity, module or diametral pitch, tooth counts, pressure angle, spiral hand where applicable, ratio, material, heat treatment, accuracy requirement and expected duty.

Can one member be replaced without the mating gear or pinion?

It may be possible after inspection, but a matched-pair approach is normally preferred because tooth contact, backlash and mounting are interdependent.

How is delivery time determined?

Delivery depends on geometry, quantity, material availability, tooling, heat treatment, finishing, inspection scope and technical approval.

Send Your Requirement

Share your drawing, sample details, quantity and delivery location. Our engineering team will review it and reply.
