Where bevel gears are used
Corrosion-aware bevel-gear solutions for marine machinery and deck equipment. In marine, the correct gear type and geometry depend on speed, torque, shaft arrangement, operating hours, environmental exposure and available mounting space.
Industry-specific design considerations
The technical review should account for shock loading, contamination, temperature, lubrication, maintenance access, bearing and housing condition, required life and the consequences of downtime. A replacement that matches only external dimensions can repeat the original failure when mounting or operating conditions have changed.
Suitable product routes

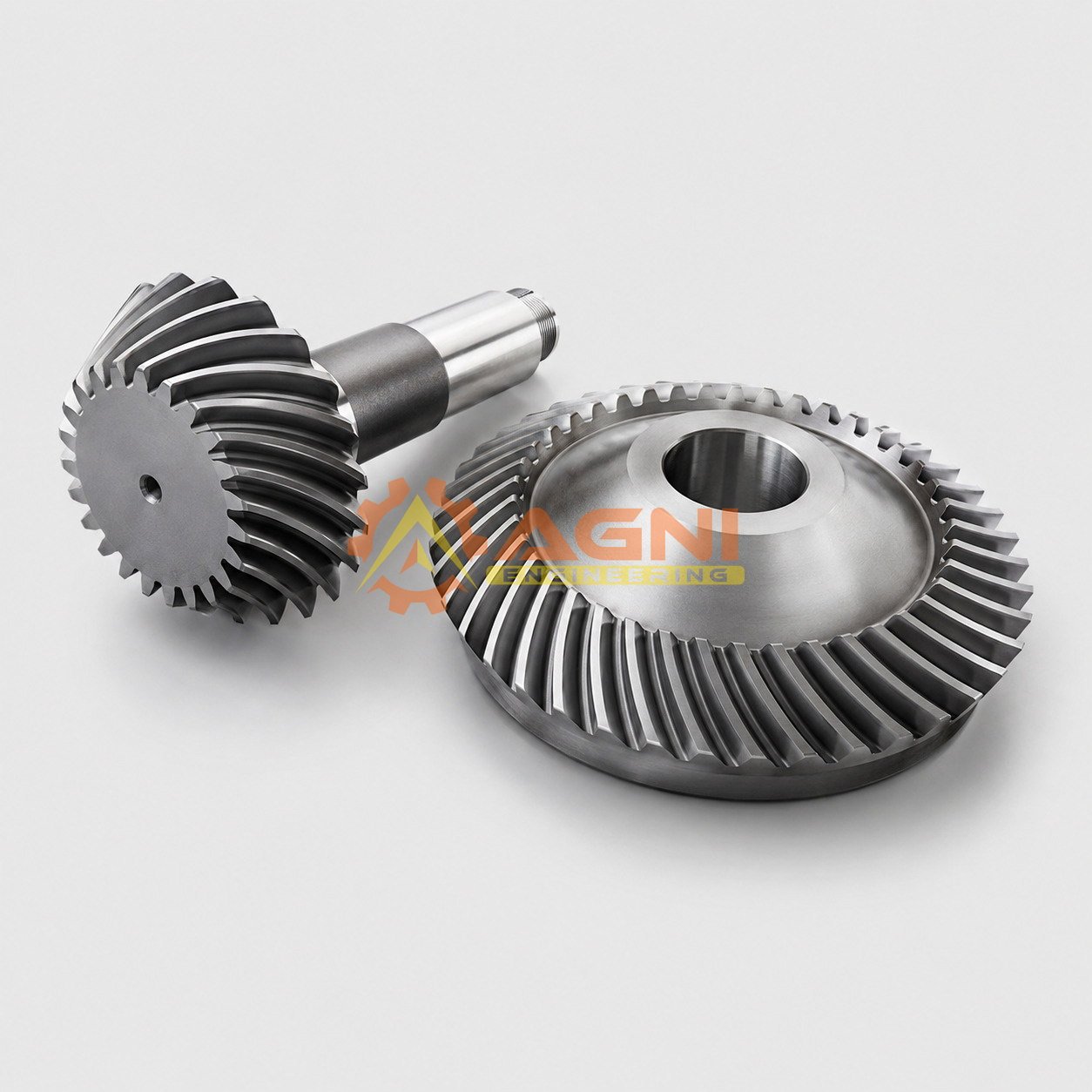

- Spiral bevel gear sets for progressive engagement and demanding drives
- Straight bevel gears for suitable lower-speed or simpler arrangements
- Miter gears where a 1:1 direction change is required
- Crown wheel and pinion sets for differential-type systems
- Hardened or ground gears where specified and technically justified
- Reverse-engineered replacements for obsolete equipment
Information required for an enquiry
Share the machine or gearbox model, ratio, speed, power or torque, duty cycle, direction of rotation, mounting arrangement, lubrication, environment, quantity and whether drawings or both samples are available.
Failure prevention and installation
Inspect bearings, shafts, housing bores, mounting distance, backlash, lubrication and tooth contact before installing a new set. A new gear pair cannot compensate for a damaged housing or unstable bearing arrangement.
Frequently asked questions
Can bevel gears for marine be developed from an existing sample?
A sample can support dimensional study, but the most reliable route also includes the mating member, shaft angle, mounting information, speed, torque, material or hardness information and failure history.
What information is required for quotation?
Provide a dimensioned drawing or sample, quantity, module or diametral pitch, tooth counts, pressure angle, spiral hand where applicable, ratio, material, heat treatment, accuracy requirement and expected duty.
Can one member be replaced without the mating gear or pinion?
It may be possible after inspection, but a matched-pair approach is normally preferred because tooth contact, backlash and mounting are interdependent.
How is delivery time determined?
Delivery depends on geometry, quantity, material availability, tooling, heat treatment, finishing, inspection scope and technical approval.
